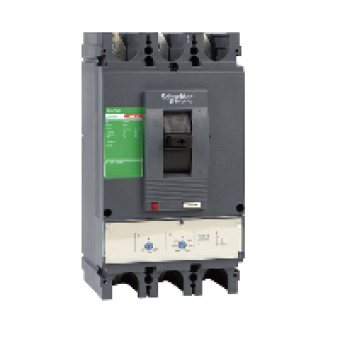

• LV563306 - Easypact CVS - CVS630F TM600D circuit breaker - 3P/3d, Schneider Electric

LV563306 - Easypact CVS - CVS630F TM600D circuit breaker - 3P/3d, Schneider Electric

  • € 384.61 Ex Tax:

MAIN CHARACTERISTICS
range
EASYPACT
range of product
EASYPACT CVS400..630
product name
EASYPACT CVS
product or component type
CIRCUIT BREAKER
device short name
CVS630F
device application
DISTRIBUTION
poles description
3P
protected poles description
3D
Earth leakage protection (Vigi add on)
WITHOUT
[In] rated current
630 A 40 DC
breaking capacity code
F
network type
AC
[Ue] rated operational voltage
440 V AC CONFORMING TO ENIEC 60947-2 5060 HZ
[Icu] Breaking capacity
40 KA ICU CONFORMING TO IEC 60947-2 AT 220240 V AC 5060 HZ
utilisation category
A
local signalling
LED 105 PT IR
trip unit name
TM-D
trip unit technology
THERMAL-MAGNETIC
trip unit rating
600 A 40 DC
protection type
OVERLOAD PROTECTION THERMAL
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
control type
TOGGLE
mounting mode
FIXED
mounting support
BACKPLATE
upside connection
FRONT
downside connection
FRONT
connections - terminals
SCREW CONNECTION
[Ui] rated insulation voltage
690 V CONFORMING TO ENIEC 60947-2
[Uimp] rated impulse withstand voltage
8 KV CONFORMING TO ENIEC 60947-2
thermal protection adjustment range
0...600 A
[Ics] rated service breaking capacity
40 KA CONFORMING TO IEC 60947-2 220240 V AC 5060 HZ
mechanical durability
15000 CYCLES
electrical durability
4000 CYCLES CONFORMING TO IEC 60947-2 415 V IN
connection pitch
45 MM
contact position indicator
YES
long time pick-up adjstment type Ir
ADJUSTABLE
long time pick-up adjustment range
0.7..1 X IN
long time delay adjustment type
FIXED
short-time delay adjustment type
FIXED
instantaneous pick-up adjustment type Ii
ADJUSTABLE
instantaneous pick-up adjustment range
4..8 X IN
height
255 MM
width
140 MM
depth
110 MM
compatibility code
CVS630
