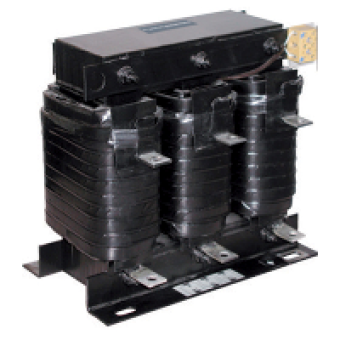

LVR07X00A69T - Anti Harmonic detuned reactor100kvar 190Hz (3.8) 7% 50Hz 690V, Schneider Electric
- Product Code: LVR07X00A69T
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,108.11 Ex Tax:
MAIN CHARACTERISTICS
device short name
DR
product or component type
DETUNED REACTOR
network frequency
50 HZ
reactive power rating
100 KVAR AT 690 V AC 50 HZ
network rated voltage
690 V AC 50 HZ
tuning order
3.8 - 190 HZ - 7 - 50 HZ
COMPLEMETARY CHARACTERISTICS
power losses (max)
480 W
value of inductance
1.116 MH
inductance tolerance
- 5 TO 5 PER PHASE
fundamental current rating
83.7 A
RMS current rating
90.4 A
electrical insulation class
CLASS H
[Ui] rated insulation voltage
1.1 KV
dielectric test voltage
4 KV FOR 1 MINUTE AT 50 HZ
[Imp] maximum permanent current
1.2 X I1
harmonic current spectrum
3.7 X I3
dynamic withstand current
2.2 X ISC
[Ith] conventional free air thermal current
2 A AT 250 V AC 50 HZ
type of installation
INDOOR INSTALLATION
type of cooling
FORCED CONVECTION
connections - terminals
PAD TERMINAL
fixing center
200 X 125 MM
height
350 MM
width
350 MM
depth
220 MM
product weight
40 KG
