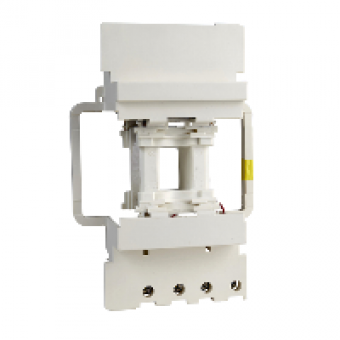

LX1D8E7 - TeSys D - contactor coil - LX1D8 - 48 V AC 50/60 Hz for 115 & 150 A contactor, Schneider Electric
- Product Code: LX1D8E7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 61.41 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product or component type
CONTACTOR COIL
device short name
LX1D8
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
48 V AC 5060 HZ
average resistance
1061 OHM AT 20 DC
inductance of closed circuit
24.19 H
product compatibility
LC1D115
mechanical durability
8 MCYCLES
operating rate
1200 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.3...0.5 UC AT 55 C DROP-OUT 5060 HZ
inrush power in VA
280...350 VA at 20 °C (cos f 0.9) 60 Hz
hold-in power consumption in VA
2...18 VA at 20 °C (cos f 0.9) 60 Hz
heat dissipation
3..4.5 W AT 5060 HZ
