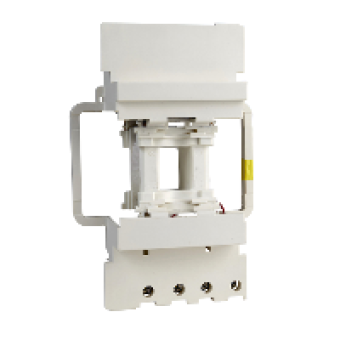

LX1D8M5 - TeSys D - contactor coil - LX1D8 - 220 V AC 50 Hz for 115 A contactor, Schneider Electric
- Product Code: LX1D8M5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 18.85 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product or component type
CONTACTOR COIL
device short name
LX1D8
control circuit type
AC 50 HZ
[Uc] control circuit voltage
220 V AC 50 HZ
average resistance
104.77 OHM AT 20 DC
inductance of closed circuit
7.65 H
product compatibility
LC1D115
mechanical durability
8 MCYCLES
operating rate
2400 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.3...0.6 UC AT 55 C DROP-OUT 50 HZ
inrush power in VA
300 VA at 20 °C (cos f 0.8) 50 Hz
hold-in power consumption in VA
22 VA at 20 °C (cos f 0.3) 50 Hz
heat dissipation
3..8 W AT 50 HZ
The Schneider Electric LX1D8M5 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
