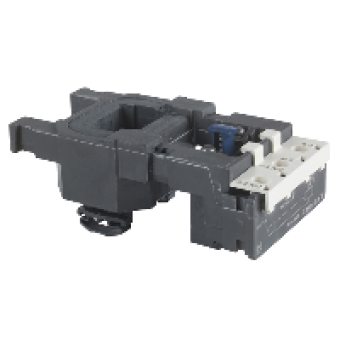

LX1FF024 - TeSys F - contactor coil - LX1FF - 24 V AC 50 Hz, Schneider Electric
- Product Code: LX1FF024
- Brand: Schneider Electric
- Availability: To be confirmed
- € 57.28 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR COIL
device short name
LX1FF
range compatibility
TESYS F LC1F CONTACTOR
control circuit type
AC 50 HZ
[Uc] control circuit voltage
24 V AC 50 HZ
average resistance
0.27 OHM AT 20 DC
inductance of closed circuit
0.04 H
product compatibility
LC1F115
operating time
23..35 MS CLOSING
mechanical durability
10 MCYCLES
operating rate
2400 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.35...0.55 UC AT 55 C DROP-OUT 5060 HZ
inrush power in VA
550 VA at 20 °C (cos f 0.3) 50 Hz
hold-in power consumption in VA
45 VA at 20 °C (cos f 0.3) 50 Hz
heat dissipation
12..16 W AT 50 HZ
