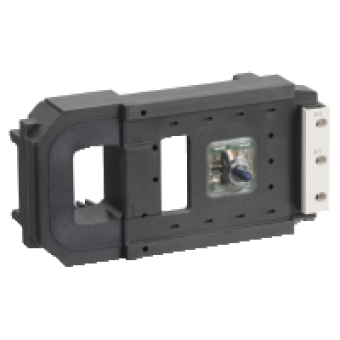

LX1FL260 - TeSys F - contactor coil - LX1FL - 265...277 V AC 40...400 Hz, Schneider Electric
- Product Code: LX1FL260
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
CONTACTOR COIL
device short name
LX1FL
range compatibility
TESYS F LC1F CONTACTOR
control circuit type
AC 40..400 HZ
[Uc] control circuit voltage
265..277 V AC 40..400 HZ
average resistance
31 OHM INRUSH AT 20 DC
inductance of closed circuit
4.1 H
product compatibility
LC1F630
operating time
100..200 MS OPENING
mechanical durability
5 MCYCLES
operating rate
1200 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL 40...400 HZ
inrush power in VA
1650 VA at 20 °C (cos f 0.9) 40...400 Hz
hold-in power consumption in VA
22 VA at 20 °C (cos f 0.3) 40...400 Hz
heat dissipation
20 W AT 40..400 HZ
