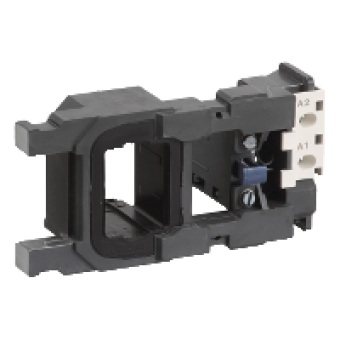

LX9FG415 - TeSys F - specific contactor coil - 415...440V AC 40...400 Hz low consumption, Schneider Electric
- Product Code: LX9FG415
- Brand: Schneider Electric
- Availability: To be confirmed
- € 114.06 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
SPECIFIC CONTACTOR COIL
device short name
LX9FG
range compatibility
TESYS F LC1F CONTACTOR
control circuit type
AC 40..400 HZ LOW CONSUMPTION
[Uc] control circuit voltage
415..440 V AC 40..400 HZ
average resistance
157 OHM INRUSH AT 20 DC
inductance of closed circuit
20.6 H
product compatibility
LC1F185
operating time
130 MS OPENING
mechanical durability
10 MCYCLES
operating rate
2400 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL
inrush power in VA
950...1180 VA AT 20 C 40...400 HZ
hold-in power consumption in VA
8.9...10.9 VA AT 20 C 40...400 HZ
heat dissipation
8..9.8 W
