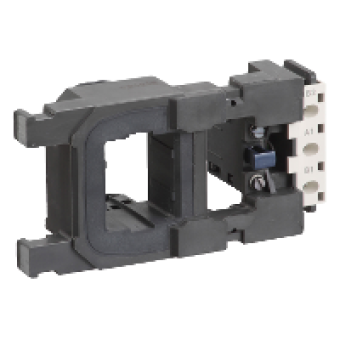

LX9FH2202 - TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption, Schneider Electric
- Product Code: LX9FH2202
- Brand: Schneider Electric
- Availability: To be confirmed
- € 124.44 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
SPECIFIC CONTACTOR COIL
device short name
LX9FH
range compatibility
TESYS F LC1F CONTACTOR
control circuit type
AC 40..400 HZ LOW CONSUMPTION
[Uc] control circuit voltage
220..230 V AC 40..400 HZ
average resistance
71.6 OHM INRUSH AT 20 DC
product compatibility
LC1F265
operating time
25 MS OPENING
mechanical durability
10 MCYCLES
operating rate
3600 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL
inrush power in VA
560...660 VA AT 20 C 40...400 HZ
hold-in power consumption in VA
8...10 VA AT 20 C 40...400 HZ
heat dissipation
8.4..10.4 W
The Schneider Electric LX9FH2202 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
