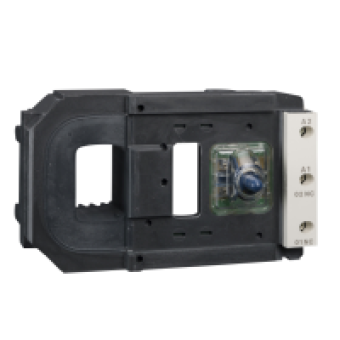

LX9FJ931 - TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption, Schneider Electric
- Product Code: LX9FJ931
- Brand: Schneider Electric
- Availability: To be confirmed
- € 210.64 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product or component type
SPECIFIC CONTACTOR COIL
device short name
LX9FJ
range compatibility
TESYS F LC1F CONTACTOR
control circuit type
AC 40..400 HZ LOW CONSUMPTION
[Uc] control circuit voltage
220..230 V AC 40..400 HZ
average resistance
99.5 OHM INRUSH AT 20 DC
inductance of closed circuit
5 H
product compatibility
LC1F400
operating time
60 MS OPENING
mechanical durability
10 MCYCLES
operating rate
3600 CYCH AT <= 70 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL
inrush power in VA
500 VA AT 20 C 40...400 HZ
hold-in power consumption in VA
23 VA AT 20 DC 40...400 HZ
heat dissipation
11.4..13.9 W
