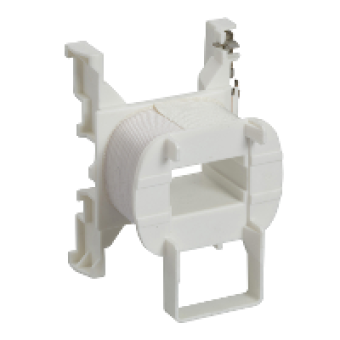

LXD1C7 - TeSys D - contactor coil - LXD1 - 32 V AC 50/60 Hz for 9… 38 A contactor, Schneider Electric
- Product Code: LXD1C7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product or component type
CONTACTOR COIL
device short name
LXD1
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
32 V AC 5060 HZ
average resistance
10.1 OHM AT 20 DC
inductance of closed circuit
0.39 H
product compatibility
CAD
mechanical durability
15 MCYCLES
operating rate
3600 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.3...0.6 UC AT 60 C DROP-OUT 5060 HZ
inrush power in VA
70 VA at 20 °C (cos f 0.75) 60 Hz
hold-in power consumption in VA
7.5 VA at 20 °C (cos f 0.3) 60 Hz
heat dissipation
2..3 W AT 5060 HZ
