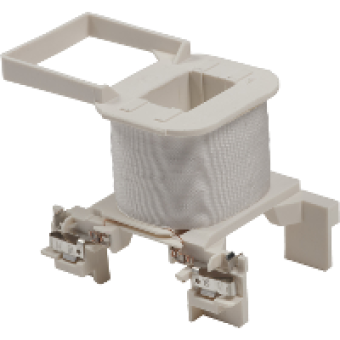

LXD3LE7 - TeSys D - contactor coil - LXD3 - 208 V AC 50/60 Hz for 40… 65 A contactor, Schneider Electric
- Product Code: LXD3LE7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 33.76 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product or component type
CONTACTOR COIL
device short name
LXD3
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
208 V AC 5060 HZ
average resistance
105 OHM AT 20 DC
inductance of closed circuit
6.22 H
product compatibility
LC1D40A..D65A
mechanical durability
6 MCYCLES
operating rate
3600 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILT-IN SPSR MODULE
control circuit voltage limits
0.3...0.6 UC AT 60 C DROP-OUT 5060 HZ
inrush power in VA
160 VA at 20 °C (cos f 0.75) 60 Hz
hold-in power consumption in VA
15 VA at 20 °C (cos f 0.3) 60 Hz
heat dissipation
4..5 W AT 5060 HZ
The Schneider Electric LXD3LE7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
