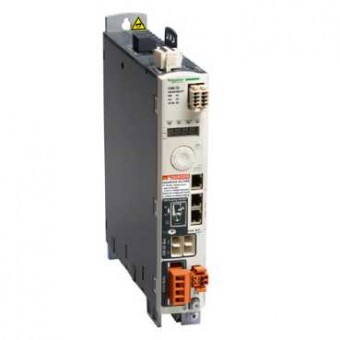

• LXM32AD72N4 - motion servo drive - Lexium 32 - three-phase supply voltage 208/480V - 0.4 kW, Schneider Electric

LXM32AD72N4 - motion servo drive - Lexium 32 - three-phase supply voltage 208/480V - 0.4 kW, Schneider Electric

  • € 1,204.64 Ex Tax:

MAIN CHARACTERISTICS
range of product
LEXIUM 32
product or component type
MOTION SERVO DRIVE
device short name
LXM32A
format of the drive
BOOK
network number of phases
THREE PHASE
[Us] rated supply voltage
200..240 V - 15..10
supply voltage limits
170...264 V
supply frequency
5060 HZ - 5..5
network frequency
47.5..63 HZ
EMC filter
INTEGRATED
continuous output current
24 A F = 8 KHZ
output current 3s peak
72 A FOR 5 S
maximum continuous power
6500 W AT 230 V
nominal power
5 KW AT 230 V F = 8 KHZ
line current
23.5 A THDI OF 43 AT 380 V WITH EXTERNAL LINE CHOKE OF 1 MH
COMPLEMETARY CHARACTERISTICS
switching frequency
8 KHZ
overvoltage category
III
leakage current
< 30 MA
output voltage
<= POWER SUPPLY VOLTAGE
electrical isolation
BETWEEN POWER AND CONTROL
type of cable
single-strand IEC cable (for θ = 50 °C) conductor material: copper 90 °C ,wire insulation material: XLPE/EPR
electrical connection
TERMINAL CABLE 3 MM AWG 12 CN8
tightening torque
0.5 N.M CN8
discrete input number
1 CAPTURE
discrete input type
CAPTURE CAP
sampling duration
0.25 MS DI FOR DISCRETE
discrete input voltage
24 V DC FOR CAPTURE
discrete input logic
POSITIVE COMPLIMENT OF STO A COMPLIMENT OF STO B AT STATE 0 < 5 V AT STATE 1 > 15 V CONFORMING TO ENIEC 61131-2 TYPE 1
response time
<= 5 MS COMPLIMENT OF STO A COMPLIMENT OF STO B
discrete output number
2
discrete output type
logic (DO) 24 V DC
discrete output voltage
<= 30 V DC
discrete output logic
POSITIVE OR NEGATIVE DO CONFORMING TO ENIEC 61131-2
contact bounce time
<= 1 MS COMPLIMENT OF STO A COMPLIMENT OF STO B
braking current
50 MA
response time on output
250 µs (DO) discrete
control signal type
SERVO MOTOR ENCODER FEEDBACK
protection type
AGAINST REVERSE POLARITY INPUTS SIGNAL
safety function
STO SAFE TORQUE OFF INTEGRATED
safety level
SIL 3 CONFORMING TO ENIEC 61508
communication interface
INTEGRATED CANMOTION
connector type
RJ45 LABELLED CN4 OR CN5 CANMOTION
method of access
SLAVE
commissioning port
2-WIRE RS485 MULTIDROP MODBUS
transmission rate
1 MBPS FOR BUS LENGTH OF <= 4 M CANOPEN CANMOTION
number of addresses
1..127 CANOPEN CANMOTION
communication service
1 RECEIVE SDO CANMOTION
status LED
1 LED (red) servo drive voltage
signalling function
DISPLAY OF FAULTS IN 7 SEGMENTS
marking
CE
operating position
VERTICAL + -10 DEGREE
product compatibility
SERVO MOTOR BMH 140 MM 2 MOTOR STACKS
width
108 MM
height
270 MM
depth
237 MM
product weight
4.8 KG
supply voltage description
THREE PHASE 230 V
network number of phases
3
drive voltage drop coefficient
0.95
field weakening
FALSE
continuous output current 2
24 A
output current 3s peak 2
72 A
switching frequency 2
8 KHZ
continuous output current 3
24 A
output current 3s peak 3
72 A
switching frequency 3
8 KHZ
communication iinterface
CANOPEN CANMOTION
number of inputs/outputs
4 DI + 1 CI + 2 DO
emc filter compatibility
TYPE 023
compatibility code
LXM32A
