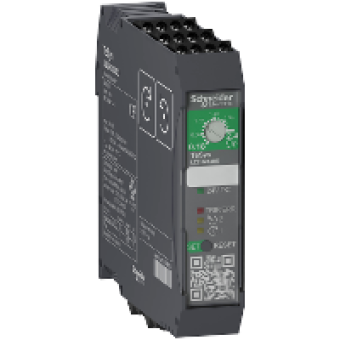

LZ2H2X4BD - Reversing Starter TeSys H 0 75kW-400V control 24VDC, Schneider Electric
- Product Code: LZ2H2X4BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 111.43 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS H
device short name
LZ2H
product or component type
RVSNG ULTRA COMPACT STARTER
motor starter type
DIRECT ON LINE
poles description
3P
[Ue] rated operational voltage
500 V AC
[Ie] rated operational current
2.4 A AT 500 V AC-51
thermal protection adjustment range
0.18...2.4 A
motor power kW
0.37 KW AT 220 V AC WITH POWER FACTOR 0.65
motor power hp
0.5 HP AT 200 V AC
[Uc] control circuit voltage
24 V DC
thermal overload class
CLASS 10A CONFORMING TO IEC 60947-4-2
COMPLEMETARY CHARACTERISTICS
auxiliary contact composition
1 CO FAULT SIGNALLING
control circuit voltage limits
19.2...30 V DC
current consumption
<= 40 MA AT 24 V DC
reset
MANUAL
Electrical durability
30 MCYCLES
operating rate
120 CYCMN AC-51 50 ON
mounting mode
BY CLIPS
mounting support
DIN RAIL
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 0.2...2.5 MM - CABLE STIFFNESS RIGID
tightening torque
0.5...0.6 N.M - WITH SCREWDRIVER 3 MM FLAT 2.5 MM
certifications
CE
standards
IEC 60947-4-2
[Ui] rated insulation voltage
500 V AC 5060 HZ
[Uimp] rated impulse withstand voltage
6 KV
pollution degree
2
width
22.5 MM
height
99 MM
depth
114.5 MM
product weight
212 G
