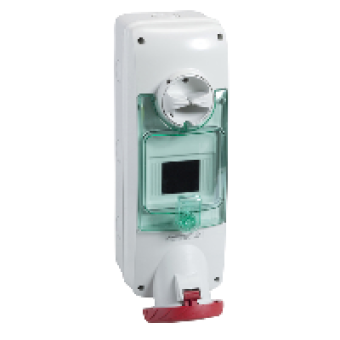

PKB63Q535 - Unika interlocked socket - 63 A - 3P + N + E - 380...415 V AC - IP65 - wall, Schneider Electric
- Product Code: PKB63Q535
- Brand: Schneider Electric
- Availability: To be confirmed
- € 112.36 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
range of product
PRATIKA
product name
UNIKA SOCKET
product or component type
INTERLOCKED SOCKET
device short name
UNIKA SOCKET
plug, socket category
LV
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
[In] rated current
63 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
protection type
WITHOUT PROTECTION
product compatibility
MODULAR DEVICE
plug, socket material
SELF-EXTINGUISHING POLYMER HOUSING
contacts material
STAINLESS STEEL PINS
connections - terminals
CAPTIVE SCREWS
cable cross section
<= 35 MM
cable outer diameter
<= 25 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
3 KG
base dimension
140 X 430 MM
height
430 MM
width
140 MM
depth
190 MM
colour
GREY RAL 7035
voltage colour
RED
compatibility code
UNIKA SOCKET
