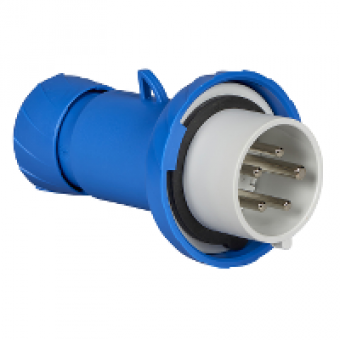

PKE16M725 - PratiKa wander plug - straight - 16 A - 3P + N + E - 200...250 V AC - IP67, Schneider Electric
- Product Code: PKE16M725
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA PLUG
product or component type
WANDER PLUG
device short name
PRATIKA PLUG
plug, socket category
LV
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
plug, socket, control station shape
STRAIGHT
[In] rated current
16 A
[Ue] rated operational voltage
200..250 V
network frequency
50 60 HZ
ground lug clockwise position
9 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
1...4 MM
cable outer diameter
8...15 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
0.22 KG
height
142 MM
width
89 MM
depth
89 MM
colour
GREY RAL 7035
voltage colour
BLUE
market segment
RESIDENTIAL
compatibility code
PRATIKA PLUG
The Schneider Electric PKE16M725 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
