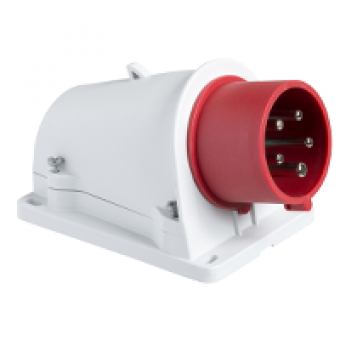

PKE32W435 - PratiKa plug - screw - angled - 32A - 3P + N + E - 380...415 V AC - wall, Schneider Electric
- Product Code: PKE32W435
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.31 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA PLUG
product or component type
PLUG
device short name
PRATIKA PLUG
plug, socket category
LV
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
plug, socket, control station shape
ANGLED
[In] rated current
32 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
NICKEL PLATED BRASS PINS
connections - terminals
CAPTIVE SCREWS CPTLY LOOSENED
cable cross section
2.5...10 MM
cable outer diameter
21.5 MM
thread type
M25
product weight
0.32 KG
base dimension
152 X 90 MM
height
152 MM
width
90 MM
colour
GREY RAL 7035
voltage colour
RED
market segment
SMALL COMMERCIAL
compatibility code
PRATIKA PLUG
