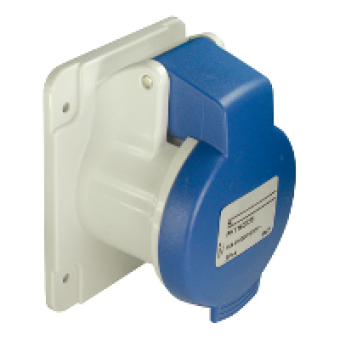

PKF16G423 - PratiKa socket - screw - straight - 16A - 2P + E - 200...250 V AC - panel, Schneider Electric
- Product Code: PKF16G423
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.01 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
SOCKET
device short name
PRATIKA SOCKET
plug, socket category
LV
poles description
2P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
PANEL-MOUNTED
plug, socket, control station shape
STRAIGHT
[In] rated current
16 A
[Ue] rated operational voltage
200..250 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
1...4 MM
product weight
0.138 KG
base dimension
65 X 85 MM
height
85 MM
width
65 MM
depth
94 MM
colour
GREY RAL 7035
voltage colour
BLUE
market segment
RESIDENTIAL
compatibility code
PRATIKA SOCKET
