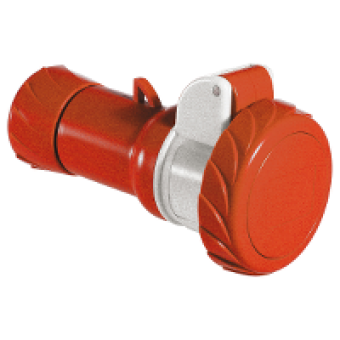

PKF16M734 - PratiKa wander socket - straight - 16 A - 3P + E - 380...415 V AC - IP67, Schneider Electric
- Product Code: PKF16M734
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.09 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
WANDER SOCKET
device short name
PRATIKA SCREW
plug, socket category
LV
poles description
3P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
plug, socket, control station shape
STRAIGHT
[In] rated current
16 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
1...4 MM
cable outer diameter
8...15 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
0.2 KG
height
87 MM
width
87 MM
depth
152 MM
colour
GREY RAL 7035
voltage colour
RED
market segment
RESIDENTIAL
compatibility code
PRATIKA SCREW
