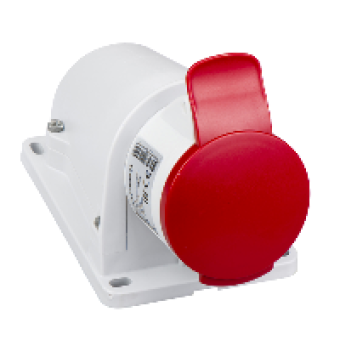

PKF16W435 - PratiKa socket - screw - angled - 16A - 3P + N + E - 380...415 V AC - wall, Schneider Electric
- Product Code: PKF16W435
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.64 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
SOCKET
device short name
PRATIKA SOCKET
plug, socket category
LV
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
plug, socket, control station shape
ANGLED
[In] rated current
16 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
1...4 MM
cable outer diameter
21 MM
thread type
M25
product weight
0.27 KG
height
120 MM
width
90 MM
depth
116 MM
colour
GREY RAL 7035
voltage colour
RED
market segment
SMALL COMMERCIAL
compatibility code
PRATIKA SOCKET
