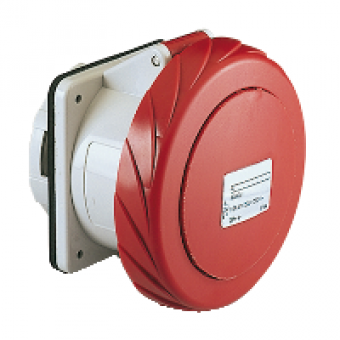

PKF32G734 - PratiKa socket - screw - straight - 32A - 3P + E - 380...415 V AC - panel, Schneider Electric
- Product Code: PKF32G734
- Brand: Schneider Electric
- Availability: To be confirmed
- € 14.40 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
SOCKET
device short name
PRATIKA SOCKET
plug, socket category
LV
poles description
3P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
PANEL-MOUNTED
plug, socket, control station shape
STRAIGHT
[In] rated current
32 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
2.5...10 MM
product weight
0.26 KG
base dimension
90 X 100 MM
height
100 MM
width
95 MM
depth
127 MM
colour
GREY RAL 7035
voltage colour
RED
market segment
RESIDENTIAL
compatibility code
PRATIKA SOCKET
