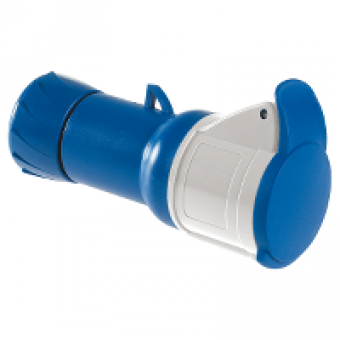

PKF32M423 - PratiKa wander socket - straight - 32 A - 2P + E - 200...250 V AC - IP44, Schneider Electric
- Product Code: PKF32M423
- Brand: Schneider Electric
- Availability: To be confirmed
- € 7.34 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
WANDER SOCKET
device short name
PRATIKA SCREW
plug, socket category
LV
poles description
2P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
plug, socket, control station shape
STRAIGHT
[In] rated current
32 A
[Ue] rated operational voltage
200..250 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
2.5...10 MM
cable outer diameter
11.5...21 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
0.25 KG
height
98 MM
width
98 MM
depth
165 MM
colour
GREY RAL 7035
voltage colour
BLUE
market segment
RESIDENTIAL
compatibility code
PRATIKA SCREW
The Schneider Electric PKF32M423 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
