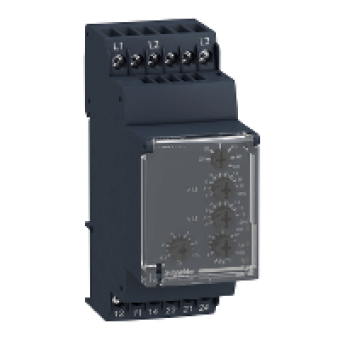

RM35TF30 - multifunction phase control relay RM35-T - range 194..528 V AC, Schneider Electric
- Product Code: RM35TF30
- Brand: Schneider Electric
- Availability: To be confirmed
- € 73.77 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
MULTIFUNCTION CONTROL RELAY
product specific application
FOR 3-PHASE SUPPLY
relay name
RM35TF
relay monitored parameters
ASYMMETRY
time delay
ADJUSTABLE 0.1...10 S +- 10 OF THE FULL SCALE VALUE
switching capacity in VA
1250 VA
measurement range
208..480 V VOLTAGE AC
COMPLEMETARY CHARACTERISTICS
reset time
<= 1500 MS FOR AT 480 V
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
5 A AC
supply voltage limits
194...528 V AC 3 PHASES
control circuit voltage limits
- 12 PT+10 PT UN
power consumption in VA
0...22 VA AT 400 V AC 50 HZ
voltage detection threshold
< 194 V
control circuit frequency
50..60 HZ + - 10 PT
output contacts
2 OC
nominal output current
5 A
measurement voltage limits
176..528 V AC
hysteresis
2
delay at power up
<= 650 MS
measuring cycle
<= 140 MS MEASUREMENT CYCLE AS TRUE RMS VALUE
threshold adjustment voltage
+2..+10 PT IN RANGE 480 V AC
voltage range
220...480 V PHASE TO PHASE
adjustment of asymmetry threshold
5..15 PT OF UN SELECTED
repeat accuracy
0.3 FOR TIME DELAY
measurement error
< 1 OVER THE WHOLE RANGE WITH VOLTAGE VARIATION
response time
< 200 MS IN THE EVENT OF A FAULT
marking
CE
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 500 MOHM AT 500 V DC CONFORMING TO IEC 60255-5
[Ui] rated insulation voltage
400 V CONFORMING TO IEC 60664-1
supply frequency
50 60 HZ + - 10 PT
operating position
ANY POSITION WITHOUT
connections - terminals
screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
local signalling
LED GREEN FOR POWER ON
mounting support
35 MM SYMMETRICAL DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
100000 CYCLES
mechanical durability
<= 30000000 CYCLES
operating rate
<= 360 OPERATIONSHOUR UNDER FULL LOAD
utilisation category
AC-12 CONFORMING TO IEC 60947-5-1
safety reliability data
MTTFD = 399.5 YEARS
width
35 MM
product weight
0.13 KG
compatibility code
RM3
The Schneider Electric RM35TF30 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
