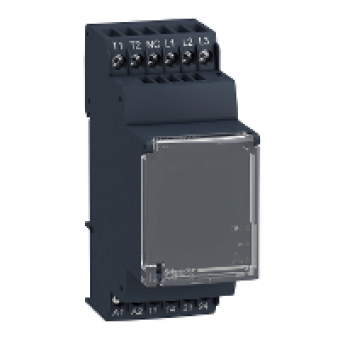

RM35TM50MW - motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO, Schneider Electric
- Product Code: RM35TM50MW
- Brand: Schneider Electric
- Availability: To be confirmed
- € 71.17 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO CONTROL
product or component type
MODULAR MSREMENT + CTRL RELAYS
relay type
MOTOR TEMPERATURE CTRL RELAY
product specific application
FOR 3-PHASE SUPPLY
relay name
RM35TM
relay monitored parameters
MOTOR TEMP VIA PTC PROBE
time delay
FIXED 0.3 S
switching capacity in VA
1250 VA
measurement range
208..480 V VOLTAGE AC
COMPLEMETARY CHARACTERISTICS
reset time
10000 MS FOR OUTPUT
maximum switching voltage
250 V AC
minimum switching current
10 MA AT 5 V DC
maximum switching current
5 A AC
supply voltage limits
20.4..264 V AC
power consumption in VA
0...4 VA AT 24...240 V AC
power consumption
<= 0.5 W DC
control circuit frequency
50..60 HZ + - 10 PT
resistance across terminals
602 MOHM
output contacts
2 NO
nominal output current
5 A
measurement voltage limits
176..528 V AC
delay at power up
<= 500 MS
voltage range
176..528 V
response time
> 50 ms input Y1 (contact Y1-T1) and push-button
[Uc] control circuit voltage
<= 3.6 V OF TEMPERATURE CONTROL CIRCUIT T1-T2 TERMINALS OPEN
short-circuit current
0.007 A TEMPERATURE SENSING CIRCUIT T1-T2 TERMINALS SHORT CIRCUITED
resistance
<= 1500 OHM FOR TEMPERATURE SENSOR AT 20 C
tripping threshold
3100 OHM +- 10 FOR TEMPERATURE CONTROL CIRCUIT
reset threshold
1650 OHM +- 10 FOR TEMPERATURE CONTROL CIRCUIT
marking
CE
overvoltage category
III CONFORMING TO IEC 60664-1
insulation resistance
> 500 MOHM AT 500 V DC BETWEEN SUPPLY AND RELAY OUTPUT CONFORMING TO IEC 60255-5
[Ui] rated insulation voltage
400 V CONFORMING TO IEC 60664-1
supply frequency
50 60 HZ + - 10 PT
operating position
ANY POSITION WITHOUT
connections - terminals
screw terminals 1 x 0.5...1 x 4 mm² - AWG 20...AWG 11, solid cable without cable end
tightening torque
0.6...1 N.M CONFORMING TO IEC 60947-1
housing material
SELF-EXTINGUISHING PLASTIC
local signalling
LED GREEN FOR POWER ON
mounting support
35 MM SYMMETRICAL DIN RAIL CONFORMING TO ENIEC 60715
electrical durability
10000 CYCLES
mechanical durability
<= 30000000 CYCLES
operating rate
<= 360 OPERATIONSHOUR UNDER FULL LOAD
utilisation category
AC-12 CONFORMING TO IEC 60947-5-1
width
35 MM
product weight
0.13 KG
compatibility code
RM3
