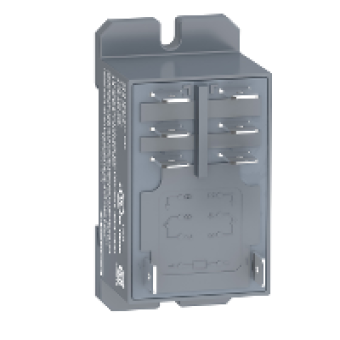

RPF2BP7 - power relay plug-in - Zelio RPF - 2 CO - 230 V AC - 30 A, Schneider Electric
- Product Code: RPF2BP7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.96 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
POWER
product or component type
PLUG-IN RELAY
device short name
RPF
contacts type and composition
2 OC
[Uc] control circuit voltage
230 V AC
control type
WITHOUT LOCKABLE TEST BUTTON
shape of pin
FLAT
contacts material
SILVER TIN OXIDE
[Ithe] conventional enclosed thermal current
25 A AT -40...55 C FOR RELAYS SIDE BY SIDE WITHOUT A GAP
Resistive rated load
25 A at 28 V DC
utilisation coefficient
10 PT
COMPLEMETARY CHARACTERISTICS
mounting support
DIN RAIL
control circuit voltage limits
184...253 V
[Ie] rated operational current
30 A AT 277 V AC FOR NO CONFORMING TO UL
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
4 KV 1.250 S
maximum switching voltage
250 V conforming to IEC
maximum switching capacity
7500 VA/700 W
Minimum recommended switching capacity
6000 MW 500 MA 12 V FOR NO
minimum switching current
500 MA
operating rate
<= 1200 CYCLESHOUR UNDER LOAD
mechanical durability
5000000 CYCLES
electrical durability
100000 CYCLES FOR RESISTIVE LOAD
Average coil consumption
4 VA AT 60 HZ
drop-out voltage threshold
>= 0.15 UC
Operate time
25 MS
Release time
25 MS
average resistance
15600 Ohm (tolerance +/- 15 %) at 20 °C
safety reliability data
B10D = 100000
protection category
RT II
operating position
ANY POSITION
CAD overall width
33.7 MM
CAD overall height
68.5 MM
CAD overall depth
39.2 MM
product weight
0.082 KG
device presentation
COMPLETE PRODUCT
compatibility code
RPF
