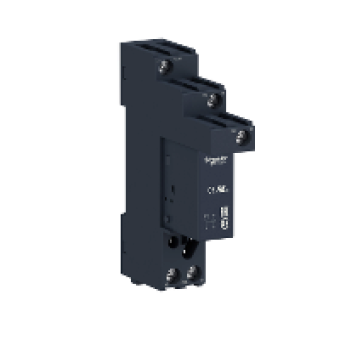

RSB1A120F7S - interface plug-in relay - Zelio RSB - 1 C/O - 120 V AC - 12 A - with socket, Schneider Electric
- Product Code: RSB1A120F7S
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.42 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
INTERFACE RELAY
product or component type
PLUG-IN RELAY
device short name
RSB
contacts type and composition
1 CO
contact operation
STANDARD
[Uc] control circuit voltage
120 V AC
[Ithe] conventional enclosed thermal current
12 A AT -40...40 DC
status LED
WITHOUT
control type
WITHOUT PUSHBUTTON
sale per indivisible quantity
10
COMPLEMETARY CHARACTERISTICS
shape of pin
FLAT
average coil resistance
10200 OHM AC AT 20 DC +- 15
[Ue] rated operational voltage
102...144 V, 60 Hz AC
[Ui] rated insulation voltage
400 V CONFORMING TO ENIEC 60947
[Uimp] rated impulse withstand voltage
3.6 KV CONFORMING TO IEC 61000-4-5
contacts material
SILVER ALLOY AG NI
[Ie] rated operational current
12 A NO AC-1DC-1 CONFORMING TO IEC
minimum switching current
5 MA
maximum switching voltage
300 V DC
minimum switching voltage
5 V
maximum switching capacity
3000 VA AC
resistive rated load
12 A AT 250 V AC
minimum switching capacity
300 mW at 5 mA
operating rate
<= 600 CYCLESHOUR UNDER LOAD
mechanical durability
30000000 CYCLES
electrical durability
100000 cycles (12 A at 250 V, AC-1) NO
operating time
10 MS BETWEEN COIL DE-ENERGISATION AND MAKING OF THE OFF-DELAY CONTACT
marking
CE
average coil consumption
0.75 VA AC at 60 Hz
drop-out voltage threshold
>= 0.15 UC AC
safety reliability data
B10D = 100000
protection category
RT I
operating position
ANY POSITION
device presentation
COMPLETE PRODUCT
compatibility code
RSB
