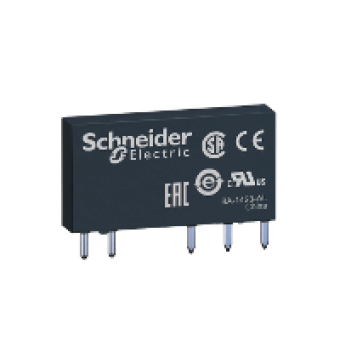

RSL1GB4BD - slim interface plug-in relay - Zelio RSL - 1 C/O low level - 24 V DC - 6 A, Schneider Electric
- Product Code: RSL1GB4BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.06 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
SLIM INTERFACE RELAY
product or component type
PLUG-IN RELAY
device short name
RSL
contacts type and composition
1 CO
contact operation
LOW LEVEL
[Uc] control circuit voltage
24 V DC
[Ithe] conventional enclosed thermal current
6 A AT -40...55 DC
status LED
WITHOUT
control type
WITHOUT PUSHBUTTON
COMPLEMETARY CHARACTERISTICS
shape of pin
FLAT PCB TYPE
average resistance
3390 OHM AT 23 C +- 15
rated operational voltage limits
18...33.6 V DC
[Ui] rated insulation voltage
250 V CONFORMING TO ENIEC
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC
contacts material
AG ALLOY - GOLD PLTD AGSNO2
[Ie] rated operational current
6 A AC-1DC-1 CONFORMING TO IECUL
minimum switching current
1 MA
maximum switching voltage
277 V
Minimum switching voltage
24 V
maximum switching capacity
1500 VA
minimum switching capacity
24 MW
operating rate
<= 360 CYCLESHOUR UNDER LOAD
mechanical durability
10000000 CYCLES
electrical durability
60000 cycles (6 A at 250 V, AC-1) C/O
operating time
5 ms
protection category
RT III
operating position
ANY POSITION
width
5 MM
height
28 MM
depth
18.5 MM
terminals description ISO n°1
11-12-14OC
product weight
0.0054 KG
load current
6 A AT 250 V AC FOR 0.5 MM MOUNTING DISTANCE
average coil consumption
0.17 W
drop-out voltage threshold
>= 0.05 Uc
safety reliability data
B10D = 60000
mounting support
SOCKET OR PCB
device presentation
COMPLETE PRODUCT
compatibility code
RSL
