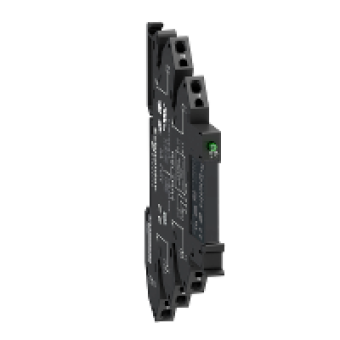

RSL1PRJU - interface plug-in relay - Zelio RSL - 1 C/O - 12 V DC - 6 A - with LED, Schneider Electric
- Product Code: RSL1PRJU
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.62 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
INTERFACE RELAY
product or component type
PLUG-IN RELAY
device short name
RSL
contacts type and composition
1 CO
contact operation
STANDARD
[Uc] control circuit voltage
12 V DC
[Ithe] conventional enclosed thermal current
6 A AT -40...55 DC
status LED
WITH
shape of pin
FLAT PCB TYPE
sale per indivisible quantity
10
COMPLEMETARY CHARACTERISTICS
fixing mode
PLASTIC COMPRESSION SPRING
average resistance
848 OHM DC AT 23 DC +- 10
[Ui] rated insulation voltage
250 V CONFORMING TO ENIEC
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC
contacts material
SILVER ALLOY AGSNO2
[Ie] rated operational current
6 A 1 CO AC-1DC-1 CONFORMING TO IECUL
minimum switching current
100 MA
maximum switching voltage
277 V
switching voltage
12 V
maximum switching capacity
1500 VA
minimum switching capacity
120 MW
operating rate
<= 72000 CYCLESHOUR NO-LOAD
mechanical durability
<= 10000000 CYCLES
electrical durability
60000 cycles for resistive load (6 A at 250 V, AC-1)
operating time
5 ms
marking
CE
protection category
RT III
operating position
ANY POSITION
height
78.6 MM
width
6.2 MM
depth
101 MM
terminals description ISO n°1
11-12-14OC
product weight
0.029 KG
load current
6 A AT 250 V AC FOR 0.5 MM MOUNTING DISTANCE
average coil consumption
0.17 W DC
drop-out voltage threshold
>= 0.05 Uc
contact terminal arrangement
SEPARATE
connections - terminals
spring terminals (1 x 0.2...1 x 1.5 mm² / AWG 24...AWG 16) flexible cable with cable end
tightening torque
10..40 N.M
safety reliability data
B10D = 60000
clamping force
10...40 N
control type
WITHOUT PUSHBUTTON
mounting support
35 MM SYMMETRICAL DIN RAIL
device presentation
COMPLETE PRODUCT
compatibility code
RSL
