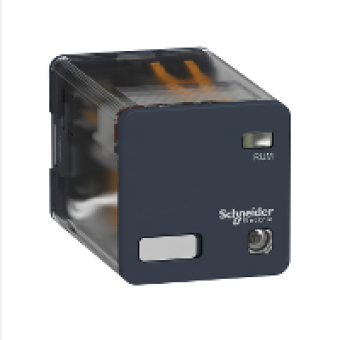

RUMF23ED - universal plug-in relay - Zelio RUM - 2 C/O - 48 V DC - 10 A - with LED, Schneider Electric
- Product Code: RUMF23ED
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
UNIVERSAL
product or component type
PLUG-IN RELAY
device short name
RUM
contacts type and composition
2 OC
[Uc] control circuit voltage
48 V DC
[Ithe] conventional enclosed thermal current
10 A AT -40...55 DC
status LED
WITH
control type
WITHOUT LOCKABLE TEST BUTTON
utilisation coefficient
20 PT
COMPLEMETARY CHARACTERISTICS
shape of pin
FLAT
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
4 KV 1.250 S
contacts material
AGNI
[Ie] rated operational current
10 A at 277 V AC conforming to UL
maximum switching voltage
250 V conforming to IEC
Resistive rated load
10 A AT 250 V AC
maximum switching capacity
2500 VA/280 W
minimum switching capacity
170 mW at 10 mA, 17 V
operating rate
<= 18000 CYCLESHOUR NO-LOAD
mechanical durability
5000000 CYCLES
electrical durability
100000 CYCLES FOR RESISTIVE LOAD
Average coil consumption in W
1.4 W
drop-out voltage threshold
>= 0.1 UC DC
Operate time
20 ms at nominal voltage
Release time
20 ms at nominal voltage
Average coil resistance
1800 Ohm at 20 °C +/- 15 %
rated operational voltage limits
38.4..52.8 V DC
protection category
RT I
safety reliability data
B10D = 100000
operating position
ANY POSITION
product weight
0.086 KG
device presentation
COMPLETE PRODUCT
compatibility code
RUM
