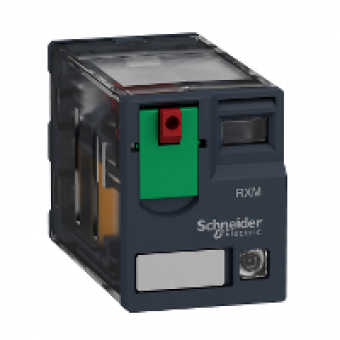

RXM2AB2P7 - Miniature Plug-in relay - Zelio RXM 2 C/O 230 V AC 12 A with LED, Schneider Electric
- Product Code: RXM2AB2P7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.07 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
MINIATURE
product or component type
PLUG-IN RELAY
device short name
RXM
contacts type and composition
2 OC
[Uc] control circuit voltage
230 V AC, 50/60 Hz
[Ithe] conventional enclosed thermal current
12 A AT -40...55 DC
status LED
WITH
control type
LOCKABLE TEST BUTTON
utilisation coefficient
20 PT
COMPLEMETARY CHARACTERISTICS
shape of pin
FLAT
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
4 kV for 1.2/50 µs
contacts material
AGNI
[Ie] rated operational current
12 A at 28 V DC (NO) conforming to IEC
maximum switching voltage
250 V conforming to IEC
resistive rated load
12 A AT 250 V AC
maximum switching capacity
3000 VA/336 W
minimum switching capacity
170 mW at 10 mA, 17 V
operating rate
<= 1200 CYCLESHOUR UNDER LOAD
mechanical durability
10000000 CYCLES
electrical durability
100000 CYCLES FOR RESISTIVE LOAD
average coil consumption in VA
1.2 at 60 Hz
average consumption
1.2 VA 60 HZ
drop-out voltage threshold
>= 0.15 UC
operate time
20 MS
release time
20 MS
average coil resistance
15000 Ohm at 20 °C +/- 15 %
rated operational voltage limits
184..253 V AC
safety reliability data
B10D = 100000
protection category
RT I
operating position
ANY POSITION
product weight
0.037 KG
device presentation
COMPLETE PRODUCT
compatibility code
RXM
