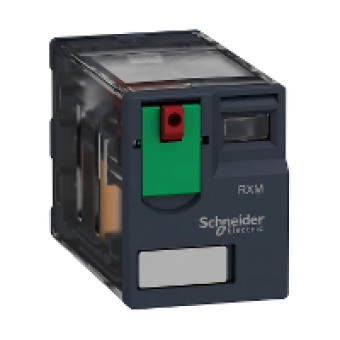

RXM4GB1E7 - Miniature Plug-in relay - Zelio RXM 4 C/O 48 V AC 3 A, Schneider Electric
- Product Code: RXM4GB1E7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
series name
MINIATURE
product or component type
PLUG-IN RELAY
device short name
RXM
contacts type and composition
4 OC
[Uc] control circuit voltage
48 V AC, 50/60 Hz
[Ithe] conventional enclosed thermal current
3 A AT -40...55 DC
status LED
WITHOUT
control type
LOCKABLE TEST BUTTON
utilisation coefficient
20 PT
COMPLEMETARY CHARACTERISTICS
shape of pin
FLAT
[Ui] rated insulation voltage
250 V CONFORMING TO IEC
[Uimp] rated impulse withstand voltage
2.5 kV for 1.2/50 µs
contacts material
GOLD PLATED BIFURCATED SILVER
[Ie] rated operational current
2 A at 28 V DC (NO) conforming to IEC
maximum switching voltage
250 V conforming to IEC
resistive rated load
3 A AT 250 V AC
maximum switching capacity
750 VA/84 W
minimum switching capacity
15 mW at 3 mA, 5 V
operating rate
<= 1200 CYCLESHOUR UNDER LOAD
mechanical durability
10000000 CYCLES
electrical durability
100000 cycles for resistive load depending on mounting position and working environment
average coil consumption in VA
1.2 at 60 Hz
average consumption
1.2 VA 60 HZ
drop-out voltage threshold
>= 0.15 UC
operate time
20 MS
release time
20 MS
average coil resistance
710 Ohm at 20 °C +/- 15 %
rated operational voltage limits
38.4..52.8 V AC
protection category
RT I
operating position
ANY POSITION
product weight
0.037 KG
device presentation
COMPLETE PRODUCT
compatibility code
RXM
