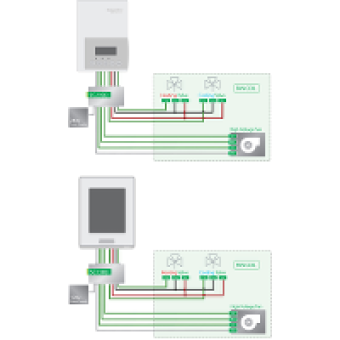

SC2300E5045 - EBE - relay pack - for mixed voltage FCU - 220/240 V AC - with transformer, Schneider Electric
- Product Code: SC2300E5045
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING EXPERT
device short name
SC2300
product or component type
RELAY
device application
MOTOR
product specific application
CONTROL OF FAN COIL
cover type
HINGED COVER
COMPLEMETARY CHARACTERISTICS
range compatibility
ECOSTRUXURE BUILDING EXPERT SE7000 SERIES ROOM CONTROLLER
device composition
RELAY
[Us] rated supply voltage
220...240 V AC at 50/60 Hz
power output
<= 12 VA AT 0.5 A
rated power in hp
0.25 HP AT 2.5 A - 240 V AC
locked rotor rated current
10 A AT 240 V AC
network number of phases
1 PHASE
network frequency
50 HZ
load type
MOTOR - 240 V AC AT 5060 HZ
electrical durability
FOR RESISTIVE LOAD - 30000 CYCLES AT 240 V - 1680 W - UTILISATION CATEGORY AC-1
number of inputs
3 DIGITAL INPUT FOR FAN SPEED
number of outputs
3 OUTPUT FOR FAN RELAY
output voltage
24 V AC FOR CONTROL CIRCUIT
local signalling
LED FOR STATUS
connections - terminals
SCREW TERMINAL OF SIZE AWG 18 MINIMUM
width
7.2 IN
depth
2.03 IN
height
5.6 IN
product weight
0.9 LB US
