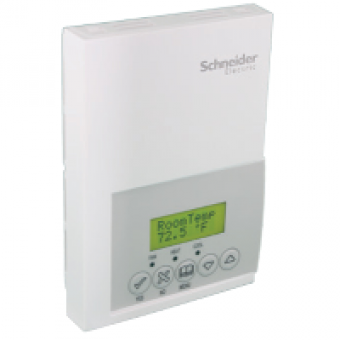

SE7652W5045 - EBE - Water Source Heat Pump controller Network Ready - scheduling - 3H/2C, Schneider Electric
- Product Code: SE7652W5045
- Brand: Schneider Electric
- Availability: To be confirmed
- € 171.46 Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING EXPERT
product name
SE7000 SERIES
device short name
SE7600W
product or component type
ROOM CONTROLLER
device application
LOW VOLTAGE HEAT PUMP
product specific application
3 STAGE HEATING
PIR cover
WITHOUT COVER
sensor type
SINGLE POINT CALIBRATED BULK POLYMER RH SENSOR WITH MEASUREMENT ACCURACY +- 5
market segment
RESIDENTIAL
COMPLEMETARY CHARACTERISTICS
range compatibility
ECOSTRUXURE BUILDING EXPERT COMMUNICATION CARD
[Us] rated supply voltage
10...30 V AC 5060 HZ
rated operational power in VA
2 VA
electrical insulation class
CLASS II
network frequency
50 HZ
communication port protocol
WITHOUT PROTOCOL
function available
HUMIDITY CONTROL
information displayed
TEMPERATURE - 40...122 F
Control accuracy
FOR HUMIDITY +- 5 AT 20...80 RH NON-CONDENSING
number of inputs
2 DRY CONTACT INPUT
number of outputs
2 UNIVERSAL OUTPUT
Output rating
FOR DIGITAL OUTPUT 30 V AC 1 A MAXIMUM
temperature setting range
40...90 F HEATING
proportional band
FOR HEATING ADJUSTABLE P REGULATOR BY 2 F FACTORY SETTTING
contact operation
5 STANDARD PUSH-BUTTON
AWG gauge
AWG 22..AWG 18
connections - terminals
SCREW TERMINAL
width
3.42 IN
depth
1.18 IN
height
4.92 IN
product weight
0.75 LBUS
