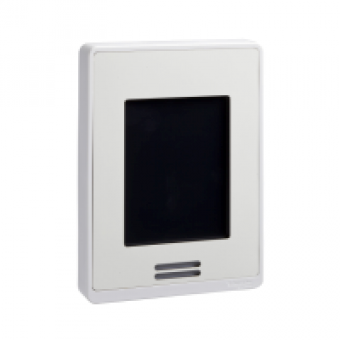

SE8350U5B11 - Fan Coil Unit and Zone controller BACnet - rel humidity - PIR cover - uni O - WH, Schneider Electric
- Product Code: SE8350U5B11
- Brand: Schneider Electric
- Availability: To be confirmed
- € 341.14 Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING EXPERT
product name
SE8000 SERIES
device short name
SE8300
product or component type
ROOM AND ZONE CONTROLLER
PIR cover
WITH COVER
sensor type
10 KOHM T2 NTC THERMISTOR MEASUREMENT RANGE +- 0.1 C
colour tint
WHITE
COMPLEMETARY CHARACTERISTICS
device application
LOW VOLTAGE FAN COIL
[Us] rated supply voltage
24 V AC 5060 HZ +- 15
network frequency
50 HZ
communication port protocol
BACNET MSTP
function available
ECONOMISER
setpoint range cooling
12...37.5 C FOR COOLING
temperature display range
-40...50 DC
measurement accuracy
+- 0.5 C TEMPERATURE
discrete input type
2 DISCRETE INPUT
analogue input type
5 ANALOG INPUT 0...10 V
number of outputs
5 DISCRETE
output voltage
0...10 V DC <= 5 MA ANALOG OUTPUT
surface finish
MATT
surface treatment
UNTREATED
AWG gauge
AWG 24..AWG 16
width
86 MM
depth
25 MM
height
120 MM
product weight
340 G
market segment
SMALL COMMERCIAL
The Schneider Electric SE8350U5B11 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
