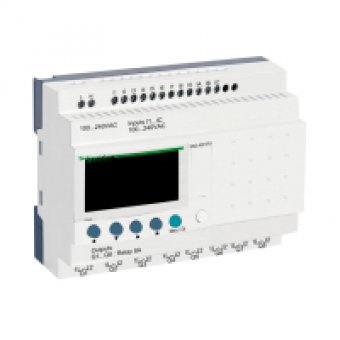

SR2A201FU - compact smart relay Zelio Logic - 20 I O - 100..240 V AC - no clock - display, Schneider Electric
- Product Code: SR2A201FU
- Brand: Schneider Electric
- Availability: To be confirmed
- € 114.59 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO LOGIC
product or component type
COMPACT SMART RELAY
COMPLEMETARY CHARACTERISTICS
local display
WITH
number or control scheme lines
0...240 WITH LADDER PROGRAMMING
cycle time
6...90 MS
backup time
10 YEARS AT 25 DC
clock drift
12 MINYEAR AT 0...55 DC
checks
PROGRAM MEMORY ON EACH PWR UP
[Us] rated supply voltage
100..240 V AC
supply voltage limits
85...264 V
supply frequency
50 60 HZ
supply current
100 MA AT 100 V WITHOUT EXTENSION
power consumption in VA
11 VA WITHOUT EXTENSION
isolation voltage
1780 V
protection type
AGNST INVN CTRL INSC NOT EXCTD
discrete input number
12
discrete input voltage
100..240 V AC
discrete input current
0.6 MA
discrete input frequency
47..53 HZ
voltage state 1 guaranteed
>= 79 V FOR DISCRETE INPUT
voltage state 0 guaranteed
<= 40 V FOR DISCRETE INPUT
current state 1 guaranteed
>= 0.17 MA FOR DISCRETE INPUT
current state 0 guaranteed
<= 0.5 MA FOR DISCRETE INPUT
input impedance
350 KOHM DISCRETE INPUT
number of outputs
8 RELAY OUTPUTS
output voltage limits
5..30 V DC RELAY OUTPUT
contacts type and composition
NO FOR RELAY OUTPUT
output thermal current
8 A FOR ALL 8 OUTPUTS RELAY OUTPUT
electrical durability
500000 CYCLES AC-12 AT 230 V 1.5 A FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1
switching capacity in mA
>= 10 MA AT 12 V RELAY OUTPUT
operating rate in Hz
0.1 HZ AT IE FOR RELAY OUTPUT
mechanical durability
10000000 CYCLES RELAY OUTPUT
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO ENIEC 60947-1 AND ENIEC 60664-1
clock
WITHOUT
response time
50 MS WITH LADDER PROGRAMMING FROM STATE 0 TO STATE 1 FOR DISCRETE INPUT
connections - terminals
SCREW TERMINALS CLAMPING CAPACITY 1 X 0.2...1 X 2.5 MM AWG 25...AWG 14 SEMI-SOLID
tightening torque
0.5 N.M
overvoltage category
III CONFORMING TO ENIEC 60664-1
product weight
0.38 KG
