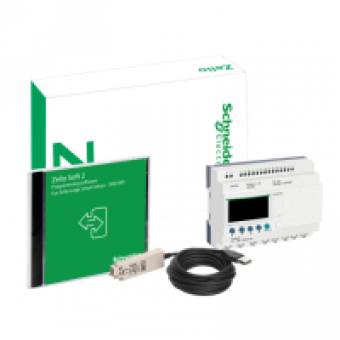

SR2PACK2BD - compact smart relay Zelio Logic - “discovery” pack - 20 I O - 24 V DC, Schneider Electric
- Product Code: SR2PACK2BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 158.02 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO LOGIC
product or component type
COMPACT DISCOVERY PACKS
discrete input number
12 CONFORMING TO ENIEC 61131-2 TYPE 1
number of outputs
8 RELAY OUTPUTS
COMPLEMETARY CHARACTERISTICS
kit composition
CBL PC SR2USB01 F CONCTN TO PC
input/output number
20
local display
WITH
number or control scheme lines
120 WITH LADDER PROGRAMMING
cycle time
6...90 MS
backup time
10 YEARS AT 25 DC
clock drift
12 MINYEAR AT 0...55 DC
checks
PROGRAM MEMORY ON EACH PWR UP
[Us] rated supply voltage
24 V
supply voltage limits
19.2...30 V
supply current
100 MA WITHOUT EXTENSION
power dissipation in W
6 W WITHOUT EXTENSION
reverse polarity protection
WITH
discrete input type
RESISTIVE
discrete input voltage
24 V DC
discrete input current
4 MA
counting frequency
1 KHZ FOR DISCRETE INPUT
voltage state 1 guaranteed
>= 15 V FOR I1...IA AND IH...IR DISCRETE INPUT CIRCUIT
voltage state 0 guaranteed
<= 5 V FOR I1...IA AND IH...IR DISCRETE INPUT CIRCUIT
current state 1 guaranteed
>= 1.2 MA FOR IB...IG USED AS DISCRETE INPUT CIRCUIT
current state 0 guaranteed
<= 0.5 MA FOR IB...IG USED AS DISCRETE INPUT CIRCUIT
input compatibility
3-WIRE PROXIMITY SENSORS PNP DISCRETE INPUT
analogue input number
2
analogue input type
COMMON MODE
analogue input range
0..10 V
maximum permissible voltage
30 V ANALOGUE INPUT CIRCUIT
analogue input resolution
8 BITS
LSB value
39 MV ANALOGUE INPUT CIRCUIT
conversion time
SMART RELAY CYCLE TIME FOR ANALOGUE INPUT CIRCUIT
conversion error
+- 5 AT 25 C FOR ANALOGUE INPUT CIRCUIT
repeat accuracy
+- 2 AT 55 C FOR ANALOGUE INPUT CIRCUIT
operating distance
10 M BETWEEN STATIONS WITH SCREENED CABLE SENSOR NOT ISOLATED FOR ANALOGUE INPUT CIRCUIT
input impedance
12 KOHM IB...IG USED AS ANALOGUE INPUT CIRCUIT
output voltage limits
24..250 V AC RELAY OUTPUT
contacts type and composition
NO FOR RELAY OUTPUT
output thermal current
8 A FOR ALL 8 OUTPUTS RELAY OUTPUT
electrical durability
500000 CYCLES AC-12 AT 230 V 1.5 A FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1
switching capacity in mA
>= 10 MA AT 12 V RELAY OUTPUT
operating rate in Hz
0.1 HZ AT IE FOR RELAY OUTPUT
mechanical durability
10000000 CYCLES RELAY OUTPUT
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO ENIEC 60947-1 AND ENIEC 60664-1
clock
WITHOUT
response time
10 MS FROM STATE 0 TO STATE 1 FOR RELAY OUTPUT
connections - terminals
SCREW TERMINALS CLAMPING CAPACITY 1 X 0.2...1 X 2.5 MM AWG 25...AWG 14 SEMI-SOLID
tightening torque
0.5 N.M
overvoltage category
III CONFORMING TO ENIEC 60664-1
product weight
0.7 KG
