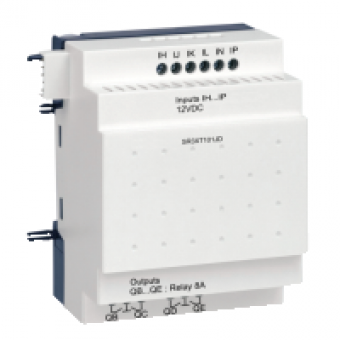

SR3XT101JD - discrete I/O extension module - 10 I O - 12 V DC - for Zelio Logic, Schneider Electric
- Product Code: SR3XT101JD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 38.89 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO LOGIC
product or component type
DISCRETE I O EXTENSION MODULE
COMPLEMETARY CHARACTERISTICS
number or control scheme lines
120 WITH LADDER PROGRAMMING
cycle time
6...90 MS
backup time
10 YEARS AT 25 DC
clock drift
12 MINYEAR AT 0...55 DC
checks
PROGRAM MEMORY ON EACH PWR UP
[Us] rated supply voltage
12 V DC
supply voltage limits
10.4...14.4 V
reverse polarity protection
WITH
discrete input number
6 CONFORMING TO ENIEC 61131-2 TYPE 1
discrete input type
RESISTIVE
discrete input voltage
12 V DC
discrete input current
4 MA
counting frequency
1 KHZ FOR DISCRETE INPUT
voltage state 1 guaranteed
>= 7 V FOR IB...IG USED AS DISCRETE INPUT CIRCUIT
voltage state 0 guaranteed
<= 3 V FOR IB...IG USED AS DISCRETE INPUT CIRCUIT
current state 1 guaranteed
>= 2 MA FOR I1...IA AND IH...IR DISCRETE INPUT CIRCUIT
current state 0 guaranteed
<= 0.2 MA FOR IB...IG USED AS DISCRETE INPUT CIRCUIT
input compatibility
3-WIRE PROXIMITY SENSORS PNP DISCRETE INPUT
input impedance
14 KOHM IB...IG USED AS DISCRETE INPUT CIRCUIT
number of outputs
4 RELAY OUTPUTS
output voltage limits
24..250 V AC RELAY OUTPUT
contacts type and composition
NO FOR RELAY OUTPUT
output thermal current
8 A FOR ALL 4 OUTPUTS RELAY OUTPUT
electrical durability
500000 CYCLES AT 230 V 0.9 A AC-15 FOR RELAY OUTPUT CONFORMING TO ENIEC 60947-5-1
switching capacity in mA
>= 10 MA AT 12 V RELAY OUTPUT
operating rate in Hz
0.1 HZ AT IE FOR RELAY OUTPUT
mechanical durability
10000000 CYCLES RELAY OUTPUT
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO ENIEC 60947-1 AND ENIEC 60664-1
response time
10 MS FROM STATE 0 TO STATE 1 FOR RELAY OUTPUT
connections - terminals
SCREW TERMINALS FLEXIBLE CABLE WITH CABLE END 1 X 0.25...1 X 2.5 MM AWG 24...AWG 14 AWG
tightening torque
0.5 N.M
overvoltage category
III CONFORMING TO ENIEC 60664-1
product weight
0.2 KG
