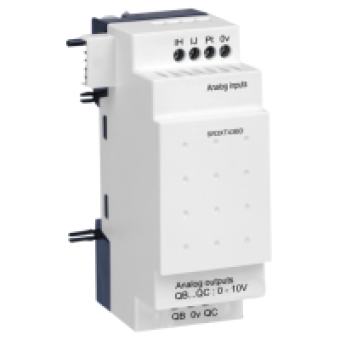

SR3XT43BD - analogue I/O extension module - 4 I O - 24 V DC - for Zelio Logic, Schneider Electric
- Product Code: SR3XT43BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 63.01 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO LOGIC
product or component type
ANALOGUE I O EXTENSION MODULE
COMPLEMETARY CHARACTERISTICS
analogue input number
2
analogue input type
COMMON MODE
analogue input range
0..10 V
temperature probe type
PT 100 3-WIRE CONFORMING TO IEC 751
maximum permissible voltage
30 V FOR ANALOGUE INPUT CIRCUIT
[Imp] maximum permanent current
30 MA FOR ANALOGUE INPUT CIRCUIT
analogue input resolution
10 BITS ON THE INPUT RANGE
input impedance
18 KOHM INPUT RANGE 0...10 V FOR ANALOGUE INPUT CIRCUIT
analogue output number
2
analogue output range
0..10 V
analogue output resolution
10 BITS ON THE OUTPUT RANGE
load type
RESISTIVE LOAD FOR ANALOGUE OUTPUT
maximum load current
10 MA FOR ANALOGUE OUTPUT
short-circuit protection
WITH ANALOGUE OUTPUT
LSB value
0.15 C - 25...125 C FOR ANALOGUE INPUT CIRCUIT
conversion time
SMART RELAY CYCLE TIME FOR ANALOGUE INPUT CIRCUIT
conversion error
+- 1 OF THE FULL SCALE VALUE INPUT RANGE 0...10 V 25 C FOR ANALOGUE OUTPUT
repeat accuracy
< +- 0.3 C INPUT RANGE - 25...125 C AT 25 C FOR ANALOGUE INPUT CIRCUIT
operating distance
10 M WITH SCREENED CABLE FOR ANALOGUE INPUT CIRCUIT
reverse polarity protection
WITH ANALOGUE INPUT CIRCUIT
connections - terminals
SCREW TERMINALS 1 X 0.25...1 X 2.5 MM AWG 24...AWG 14 SEMI-SOLID CABLE
tightening torque
0.5 N.M
product weight
0.11 KG
