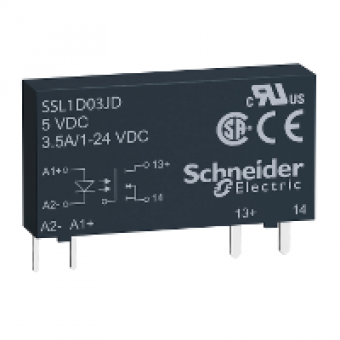

SSL1D03JD - solid state relay Plug-in input 3-12 V DC output 1-24 V DC 3.5A, Schneider Electric
- Product Code: SSL1D03JD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9.80 Ex Tax:
This product has a minimum quantity of 10
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
device short name
SSL
network number of phases
1 PHASE
COMPLEMETARY CHARACTERISTICS
mounting support
SOCKET
[In] rated current
3.5 A
output voltage
1...24 V DC
[Uc] control circuit voltage
3...12 V DC
contacts type and configuration
1 NO
capacitance unbalance
<= 1.5 pF input/output
minimum switching voltage
3 V DC TURN-ON
maximum switching voltage
1 V DC TURN-OFF
input current limits
10 MA
input impedance
500 OHM
solid state output type
MOSFET OUTPUT
load current
0.001...3.5 A
absolute maximum voltage
30 V
maximum operating frequency
500 HZ
surge current
<= 9 A for 10 ms
voltage drop
<= 0.5 V on-state
leakage current
<= 0.001 mA off-state
response time
0.12 ms turn-on
overvoltage category
III
width
5 MM
height
28 MM
depth
15 MM
product weight
0.0041 KG
device presentation
COMPLETE PRODUCT
