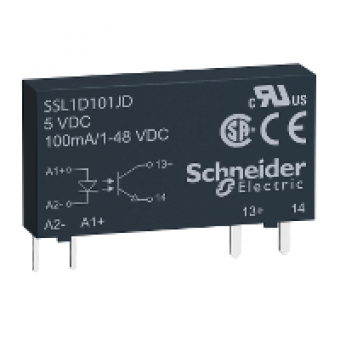

SSL1D101JD - solid state relay Plug-in input 3-12 V DC output 1-48 V DC 0.1A, Schneider Electric
- Product Code: SSL1D101JD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 7.05 Ex Tax:
This product has a minimum quantity of 12
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
device short name
SSL
network number of phases
1 PHASE
COMPLEMETARY CHARACTERISTICS
mounting support
SOCKET
[In] rated current
0.1 A
output voltage
1...48 V DC
[Uc] control circuit voltage
3...12 V DC
contacts type and configuration
1 NO
capacitance unbalance
<= 1.5 pF input/output
minimum switching voltage
3 V DC TURN-ON
maximum switching voltage
1 V DC TURN-OFF
input current limits
4 MA
input impedance
1250 OHM
solid state output type
TRANSISTOR OUTPUT
load current
0.001...0.1 A
absolute maximum voltage
60 V
maximum operating frequency
500 HZ
surge current
<= 0.3 A for 10 ms
voltage drop
<= 1 V on-state
leakage current
<= 0.001 mA off-state
response time
0.02 ms turn-on
overvoltage category
III
width
5 MM
height
28 MM
depth
15 MM
product weight
0.0041 KG
device presentation
COMPLETE PRODUCT
