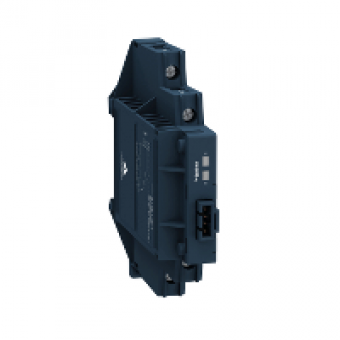

SSM2A16BDR - solid state relay - DIN rail mount - input 4-32 V DC output 24-280 V AC 6A, Schneider Electric
- Product Code: SSM2A16BDR
- Brand: Schneider Electric
- Availability: To be confirmed
- € 30.97 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
device short name
SSM
number of channels
2
Number of phases
2 PHASES
COMPLEMETARY CHARACTERISTICS
mounting support
SYMMETRICAL DIN RAIL
[In] rated current
6 A
output voltage
24..280 V AC
[Uc] control circuit voltage
4...32 V DC
contacts type and configuration
2 NO
tightening torque
0.5...0.8 N.m for input
connections - terminals
SCREW TERMINALS 1 X 0.3...1 X 1.5 MM AWG 22...AWG 16 FOR INPUT
maximum capacitance
<= 10 pF for input/output
insulation resistance
1000 MOhm at 500 V DC
local signalling
LED GREEN FOR INPUT STATUS
minimum switching voltage
4 V DC TURN-ON
maximum switching voltage
1 V DC TURN-OFF
input current
14...16.87 MA
solid state output type
SCR OUTPUT
load current
0.15...6 A
transient overvoltage
600 V
surge current
<= 715 A for 16.6 ms
voltage drop
1.3 V on-state
motor power hp
0.16 hp at 40 °C 240 V AC
maximum I²t for fusing
2560 A².s for 10 ms at 50 Hz half cycle
leakage current
<= 0.1 mA off-state
dV/dt
500 VS OFF-STATE AT MAXIMUM VOLTAGE
response time
0.5 CYCLE TURN-OFF
power factor
>= 0.5 with maximum load
overvoltage category
III
width
18 MM
height
90.3 MM
depth
84.4 MM
product weight
0.09 KG
device presentation
COMPLETE PRODUCT
