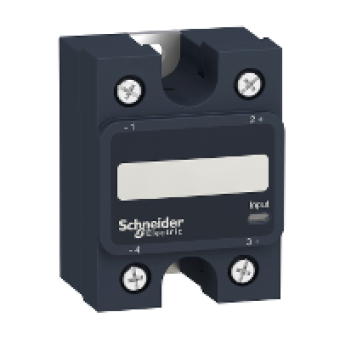

SSP1A110M7T - solid state relay-panel mount-thermal pad-input 90-280VAC output 24-300V AC 10 A, Schneider Electric
- Product Code: SSP1A110M7T
- Brand: Schneider Electric
- Availability: To be confirmed
- € 19.74 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
Provided accessory
THERMAL PAD
device short name
SSP1
mounting support
PANEL
Number of phases
1 PHASE
Contacts type and conifguration
1 NO
[In] rated current
10 A
solid state output type
ZERO VOLTAGE SWITCHING
COMPLEMETARY CHARACTERISTICS
[Uc] control circuit voltage
90...280 V AC
minimum switching voltage
90 V AC TURN-ON
maximum switching voltage
10 V AC TURN-OFF
response time
30 ms turn-off
Input current
5...10 MA
output voltage
24...300 V AC
load current
0.15...10 A
Transient overvoltage
600 V
surge current
<= 120 A for 16.6 ms
maximum I²t for fusing
60 A.S FOR 8.33 MS AT 60 HZ HALF CYCLE
Co-ordination type
TYPE 1 - 13 A MINIATURE CIRCUIT BREAKER MCB - CURVE B
leakage current
<= 1 MA OFF-STATE
voltage drop
1.15 V ON-STATE
dV/dt
500 VS OFF-STATE AT MAXIMUM VOLTAGE
Power factor
0.5 with maximum load
Motor controller rating
0.5 HP 120 V AC
insulation resistance
1000 MOhm at 500 V DC
Maximum capacitance
8 pF for input/output
dielectric strength
4 kV AC for input/output
[Uimp] rated impulse withstand voltage
6 KV OUTPUT TO CASE
tightening torque
1.5...1.7 N.M FOR INPUT
connections - terminals
SCREW TERMINALS 0.2...3.3 MM AWG 24...AWG 12 WITH CABLE END FOR INPUT
Thermal resistance
1.03 CW JUNCTION TO CASE
thermal pad impedance
0.48 C-INW AT 25 PSI
LED indicator
LED GREEN FOR INPUT
IP degree of protection
IP20
safety reliability data
MTTFD = 1875.9 YEARS
product weight
89.2 G
device presentation
COMPLETE PRODUCT
