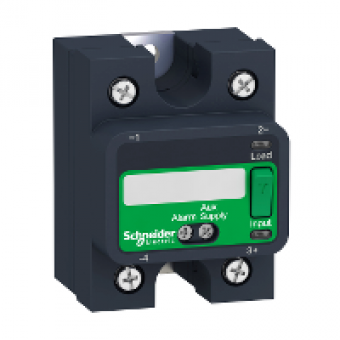

SSP1A475BDS - SSR-panel mount-thermal pad-input 4-32 VDC output 48-660 VAC 75A with Diagnostic, Schneider Electric
- Product Code: SSP1A475BDS
- Brand: Schneider Electric
- Availability: To be confirmed
- € 43.32 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
Provided accessory
THERMAL PAD
device short name
SSP1
mounting support
PANEL
Number of phases
1 PHASE
Contacts type and conifguration
1 NO
[In] rated current
75 A
solid state output type
ZERO VOLTAGE SWITCHING
COMPLEMETARY CHARACTERISTICS
[Uc] control circuit voltage
4...32 V DC
minimum switching voltage
4 V DC TURN-ON
maximum switching voltage
1 V DC TURN-OFF
response time
0.5 CYCLE TURN-ON
Input current
7...12 MA
output voltage
48..660 V AC
load current
0.15...75 A
Transient overvoltage
1200 V
surge current
<= 1000 A FOR 16.6 MS
maximum I²t for fusing
4150 A.S FOR 8.33 MS AT 60 HZ HALF CYCLE
Co-ordination type
TYPE 1 - 50 A MINIATURE CIRCUIT BREAKER MCB - CURVE B
leakage current
<= 1 MA OFF-STATE
voltage drop
1.15 V ON-STATE
dV/dt
500 VS OFF-STATE AT MAXIMUM VOLTAGE
Power factor
0.5 with maximum load
Motor controller rating
1.5 HP 120 V AC
insulation resistance
1000 MOhm at 500 V DC
Maximum capacitance
8 pF for input/output
dielectric strength
4 kV AC for input/output
[Uimp] rated impulse withstand voltage
6 KV OUTPUT TO CASE
tightening torque
1.5...1.7 N.M FOR INPUT
connections - terminals
SCREW TERMINALS 0.2...3.3 MM AWG 24...AWG 12 WITH CABLE END FOR INPUT
Auxiliary/Alarm connection terminal
SCREW-TYPE CONNECTOR 0.5...1.5 MM AWG 20...AWG 16 WITH SLOTTED PHILIPS SCREWDRIVER
Thermal resistance
0.3 CW JUNCTION TO CASE
LED indicator
LED STEADY GREEN FOR ON STATUS FOR CONTROL INPUTTEST BUTTON ACTUATED
Maximum alarm output current
30 MA AT 32 V DC
minimum load current
150 MA
IP degree of protection
IP20
safety reliability data
MTTFD = 1875.9 YEARS
product weight
97.1 G
device presentation
COMPLETE PRODUCT
The Schneider Electric SSP1A475BDS is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
