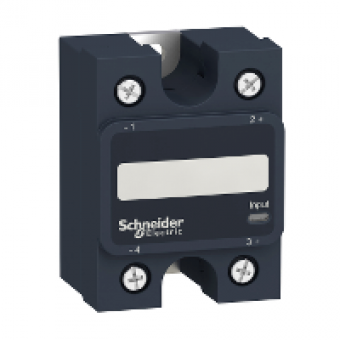

SSP1D440BD - solid state relay - panel mounting - input 3.5-32V DC output 1-150 V DC 40A, Schneider Electric
- Product Code: SSP1D440BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 27.20 Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
device short name
SSP1
mounting support
PANEL
Number of phases
1 PHASE
Contacts type and conifguration
1 NO
[In] rated current
25 A
solid state output type
MOSFET OUTPUT
COMPLEMETARY CHARACTERISTICS
[Uc] control circuit voltage
3.5...32 V DC
minimum switching voltage
3.5 V DC TURN-ON
maximum switching voltage
1 V DC TURN-OFF
response time
0.1 MS TURN-ON
Input current
10...15 MA
output voltage
1...150 V DC
load current
0...40 A
surge current
<= 106 A FOR 10 MS
Co-ordination type
TYPE 2 - 20 A MINIATURE CIRCUIT BREAKER MCB - CURVE B
leakage current
<= 0.3 MA OFF-STATE
voltage drop
2.1 V ON-STATE
insulation resistance
1000 MOhm at 500 V DC
Maximum capacitance
50 PF FOR INPUTOUTPUT
dielectric strength
2.5 kV AC for input/output
[Uimp] rated impulse withstand voltage
2.5 KV OUTPUT TO CASE
tightening torque
1.5...1.7 N.M FOR INPUT
connections - terminals
SCREW TERMINALS 0.2...3.3 MM AWG 24...AWG 12 WITH CABLE END FOR INPUT
Thermal resistance
0.22 CW JUNCTION TO CASE
LED indicator
LED GREEN FOR INPUT
IP degree of protection
IP20
safety reliability data
MTTFD = 1875.9 YEARS
product weight
89.2 G
device presentation
COMPLETE PRODUCT
