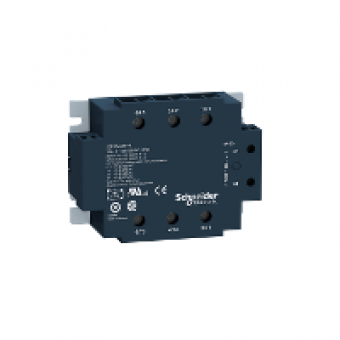

SSP3A225B7R - solid state relay - panel mounting - input 18-36 V AC output 48-530 V AC 25A, Schneider Electric
- Product Code: SSP3A225B7R
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
ZELIO RELAY
product or component type
SOLID STATE RELAY
device short name
SSP
mounting support
PANEL
Number of phases
3 PHASES
Contacts type and conifguration
3 NO
solid state output type
RANDOM VOLTAGE SWITCHING
COMPLEMETARY CHARACTERISTICS
control type
WITHOUT TEST BUTTON
[Uc] control circuit voltage
18...36 V AC
minimum switching voltage
18 V AC TURN-ON
maximum switching voltage
2 V AC TURN-OFF
response time
20 ms turn-on
Input current
15...20 MA
output voltage
48..530 V AC
load current
0.1...25 A
Transient overvoltage
1200 V
surge current
<= 275 A for 20 ms
maximum I²t for fusing
380 A².s for 10 ms at 50 Hz half cycle
leakage current
<= 3 mA off-state
voltage drop
<= 1.35 V on-state
dV/dt
500 VS OFF-STATE AT MAXIMUM VOLTAGE
Power factor
>= 0.5 with maximum load
Motor controller rating
0.75 hp at 40 °C 120 V AC
motor power kW
0.56 kW at 40 °C 120 V AC
insulation resistance
>= 1000 MOhm at 500 V DC
Maximum capacitance
<= 8 pF for input/output
dielectric strength
4 kV AC for input/output
tightening torque
0.9...1.1 N.M FOR INPUT
connections - terminals
SCREW TERMINALS 1 X 0.2...1 X 2.5 MM AWG 24...AWG 14 FOR INPUT
Thermal resistance
0.24 CW
LED indicator
LED GREEN FOR INPUT
IP degree of protection
IP20
product weight
0.36 KG
width
101.3 MM
height
79.7 MM
depth
35.4 MM
device presentation
COMPLETE PRODUCT
