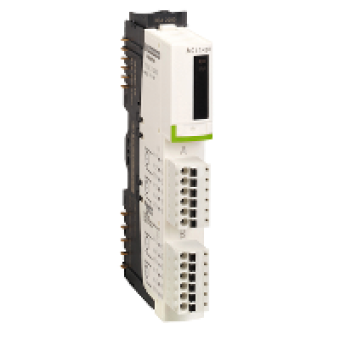

STBACI1400K - standard analog input kit STB - 4..20 mA - 8 I - 15 bits + sign, Schneider Electric
- Product Code: STBACI1400K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 439.60 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
STANDARD ANALOG INPUT KIT
kit composition
STBACI1400 MODULE
analogue input type
CURRENT 0..20 MA
analogue input number
8
analogue input resolution
15 BITS + SIGN
type of filter
SINGLE LOW PASS INPUT FILTER 985 HZ
COMPLEMETARY CHARACTERISTICS
absolute maximum input
25 MA50 V DC
cold swapping
YES
hot swapping fallback
YES FOR STANDARD NIMS
fallback status
STATE 0 BASIC NIMS
data format
EN 61131-2
update time
22 MS
integral linearity
+ - 0.08 PTFS
differential linearity
MONOTONIC
input impedance
<= 250 OHM
supply current for sensors
100 MA PER INPUT CHANNELS
absolute accuracy error
+- 0.4 OF FULL SCALE PER DC
temperature drift
+-0.005 DC
insulation between channels and logic bus
1500 V FOR 1 MINUTE
insulation between channels and sensor bus
30 V
addressing requirement
16 INPUT WORDS
product compatibility
MOUNTING BASE STBXBA2000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
90 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
depth
70 MM
height
18.4 MM
width
128.3 MM
