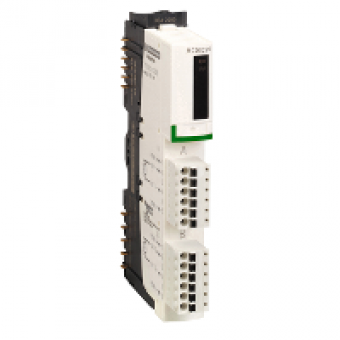

STBACO8220K - standard analog output HART kit STB - 4..20 mA - 2 O - 15 bits + sign, Schneider Electric
- Product Code: STBACO8220K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 365.16 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
STANDARD ANALOG OUTPUT KIT
kit composition
STBXBA2000 BASE
analogue output type
CURRENT 4..20 MA
analogue output number
2
analogue output resolution
15 BITS + SIGN
COMPLEMETARY CHARACTERISTICS
analogue output current
0.02 A
response time
40 MS PLUS UPDATE TIME
cold swapping
YES
hot swapping
YES FOR STANDARD NIMS
fallback
STATE 0 BASIC NIMS
data format
EN 61131-2
update time
8 MS
integral linearity
+ -0.05 PTFS
differential linearity
MONOTONIC
absolute accuracy error
+- 0.3 OF FULL SCALE 25 DC
temperature drift
+-0.005 DC
insulation between channels and logic bus
1500 V FOR 1 MINUTE
insulation between channels and actuator bus
200 V
product compatibility
MOUNTING BASE STBXBA1000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
210 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
depth
70 MM
height
18.4 MM
width
128.3 MM
