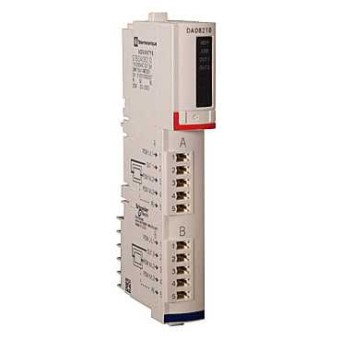

STBDAO8210K - standard digital output kit - Modicon STB - 115..230 V AC - 2 O, Schneider Electric
- Product Code: STBDAO8210K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 103.01 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
STANDARD DIGITAL OUTPUT KIT
kit composition
STBDAO8210 MODULE
discrete output number
2
discrete output type
TRIAC
discrete output voltage
115...230 V
discrete output voltage type
AC
COMPLEMETARY CHARACTERISTICS
discrete output current
1000 MA 60 DC
discrete output logic
POSITIVE OR NEGATIVE
permissible voltage
20..265 V AC
output voltage
20...265 V AC
absolute maximum voltage
300 V 10 S
response time
10 MS OFF-TO-ON
cold swapping
YES
hot swapping
YES FOR STANDARD NIMS
fallback
STATE 0 BASIC NIMS
protection type
OUTPUT SURGE PROTECTION VARISTANCE AND RC CIRCUIT
insulation between channels and logic bus
1780 V FOR 1 MINUTE
leakage current
<= 2 MA AT STATE 0 115 V
surge current
<= 20 A 40 MS
minimum load
5 MA
reset
MANUAL OR AUTOMATIC RESET COM FAULT
product compatibility
I O BASE STBXBA2000
supply
POWER DISTRIBUTION MODULE
current consumption
45 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
height
18.4 MM
depth
70 MM
width
128.3 MM
product weight
0.125 KG
