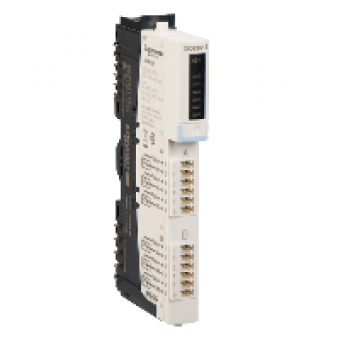

STBDDI3615K - basic digital input kit STB - 24 V DC - 6 I, Schneider Electric
- Product Code: STBDDI3615K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 65.36 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
BASIC DIGITAL INPUT KIT
kit composition
STBDDI3615 MODULE
discrete input number
6
discrete input voltage
24 V
discrete input voltage type
DC
COMPLEMETARY CHARACTERISTICS
input voltage limits
15..30 V AT STATE 1
permissible voltage
30 V
absolute maximum voltage
56 V 1.3 MS
discrete input current
4.5 MA
current state 0 guaranteed
<= 0.5 MA
current state 1 guaranteed
>= 2.5 MA
discrete input logic
POSITIVE
response time
5.25 MS OFF-TO-ON
protection type
POWER PROTECTION INTEGRATED FUSE ON PDM TIME LAG 5 A
insulation between channels and logic bus
1500 V FOR 1 MINUTE
cold swapping
YES
hot swapping
YES FOR BASIC NIMS
input filtering
5 MS
product compatibility
I O BASE STBXBA1000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
45 MA 5 V DC LOGIC BUS
marking
CE
overvoltage category
II
status LED
1 LED GREEN MODULE STATUS RDY
depth
65.1 MM
height
18.4 MM
width
125 MM
product weight
0.112 KG
