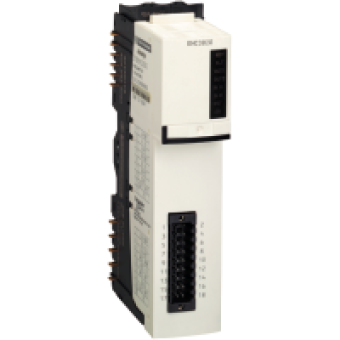

STBEHC3020KC - counter kit STB - 1 CH - 0..40000 Hz - 2 I, Schneider Electric
- Product Code: STBEHC3020KC
- Brand: Schneider Electric
- Availability: To be confirmed
- € 207.47 Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON STB DIST I O SOLUTION
product or component type
COUNTER KIT
number of channels
1
COMPLEMETARY CHARACTERISTICS
kit composition
STBEHC3020 MODULE
counting input number
2
counting frequency
<= 40000 HZ
counter functions
COUNT EVENTS
counter configuration
MODICON CONFIGURATION SOFTWARE
input compatibility
2 3 WIRE PHOTO-ELECTRIC SENSOR
input voltage
24 V
input voltage limits
19.2..30 V
input voltage type
DC
input current
6 MA
input logic
POSITIVE
voltage state 0 guaranteed
-3...5 V
voltage state 1 guaranteed
11...30 V
current state 0 guaranteed
<= 1.5 MA
current state 1 guaranteed
>= 2 MA
filter time
0 MS DIGITAL 40000 HZ COUNTING INPUTS
output voltage
24 V
output voltage limits
19.2..30 V
output voltage type
DC
nominal output current
0.5 A
discrete output logic
POSITIVE OR NEGATIVE CONF
leakage current
<= 0.1 MA AT STATE 0
voltage drop
<= 3 V AT STATE 1
load inductance
<= 500 MH 4 HZ
protection type
OVERLOAD PROTECTION ELECTRONIC TRIPPING MANUAL OR AUTOMATIC RESET
fallback status
HOLD LAST VALUE CONFIGURED
cold swapping
YES
hot swapping fallback
FALLBACK OUTPUT DEPENDING ON PARAMETER SETTING CONFIGURED MANDATORY STANDARD NETWORK INTERFACE MODULE
product compatibility
MOUNTING BASE STBXBA3000
[Us] rated supply voltage
24 V DC
supply
POWER DISTRIBUTION MODULE
current consumption
60..100 MA 5 V DC LOGIC BUS
insulation between channels and bus
500 V
marking
CE
overvoltage category
II
status LED
1 LED GREEN EN VALIDATION INPUT STATUS EN
height
28.1 MM
depth
70 MM
width
128.3 MM
