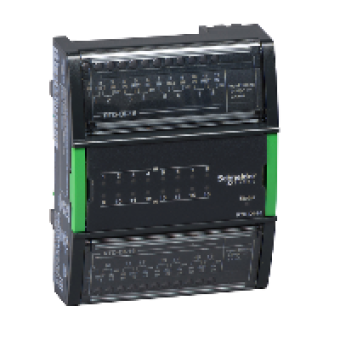

SXWRTD16X10001 - RTD and Digital inputs combination module, Schneider Electric
- Product Code: SXWRTD16X10001
- Brand: Schneider Electric
- Availability: To be confirmed
- € 696.96 Ex Tax:
MAIN CHARACTERISTICS
range
ECOSTRUXURE BUILDING OPERATION
product name
I O MODULES
device short name
RTD DI 16
product brand
SCHNEIDER ELECTRIC
product or component type
I O MODULE
discrete input number
16
input type
DIGITAL
discrete input voltage
24 V
COMPLEMETARY CHARACTERISTICS
range compatibility
TB-IO-W1 TERMINAL BASE
discrete input voltage type
DC
material
ABS PC
switching frequency
25 HZ
control type
WITHOUT
power consumption in W
1.6 W
local signalling
LED GREEN RED FOR HIGH SIGNAL LEVEL
electrical connection
PLUG-IN SUB-BASE DC
mounting support
DIN RAIL
width
30 MM
depth
64 MM
height
114 MM
quantity per set
1
product weight
146 G
The Schneider Electric SXWRTD16X10001 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
